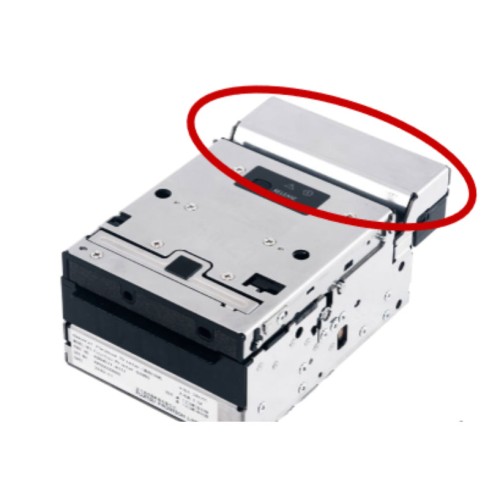

The Fujitsu 9890S is a compact airline ticketing printer module designed for self-service airport environments, including airline kiosks and self-baggage drop systems. Built for boarding pass and baggage tag printing, the 9890S gives kiosk manufacturers, airlines, airports, and system integrators a reliable thermal printer module that fits into space-sensitive installations.

Designed as a printer module rather than a countertop unit, the Fujitsu 9890S is ideal for embedded applications where compact size, dependable performance, and integration flexibility are essential. Its small footprint helps kiosk and self-baggage drop manufacturers reduce the size of passenger processing equipment while maintaining professional-grade print performance.

The 9890S uses direct thermal printing with 203 dpi resolution and an 80 mm print width, making it suitable for crisp text, barcodes, QR codes, baggage tags, and boarding pass output. Selectable print speeds of 5, 6, 7, or 8 inches per second allow the printer to be configured for different operational requirements.

For airline and airport environments that require RFID capability, the Fujitsu 9890S supports an optional RFID unit that can be added as a field upgrade. The printer can also be configured for linerless media, allowing customers to choose a general model or upgrade to a linerless configuration by changing the platen roller and cutter unit.

The Fujitsu 9890S includes standard cutter, cut, and clamp functions for reliable media handling. It also supports common 1D and 2D barcode formats, including Code 39, Code 128, EAN-13, PDF417, Aztec, Data Matrix, and QR codes.

For system integration, the 9890S supports USB 2.0 connectivity with virtual COM support for RS232C. It is compatible with ITPS standards and supports major airline and airport system environments, including ARINC vMUSE, ARINC iMUSE, ARINC cMUSE, Navitaire, Amadeus, TravelSky, and Microsoft Windows driver environments.

Maintenance is supported through computer diagnostic and test tools, transaction log data, and dot detection. These features help simplify service, reduce downtime, and support reliable operation in high-volume passenger processing environments.

The Fujitsu 9890S is a strong choice for airlines, airports, kiosk manufacturers, self-baggage drop providers, and passenger service system integrators looking for a compact, upgradeable, and airline-ready printer module.

• Compact printer module for airline self-service kiosks
• Designed for boarding pass and baggage tag printing
• Suitable for self-baggage drop systems
• Direct thermal printing with 203 dpi resolution
• 80 mm print width
• Selectable print speeds of 5, 6, 7, or 8 inches per second
• Optional RFID field upgrade
• Linerless media upgrade capability
• Standard cutter, cut, and clamp functions
• USB 2.0 connectivity with virtual COM support for RS232C
• Supports ITPS standards
• Compatible with major airline and airport system environments
• Supports common 1D and 2D barcode formats
• Built-in diagnostic and maintenance tools
• Compact design helps reduce kiosk equipment size

• Product Type: Boarding Pass & Baggage Tag Printer Module
• Print Technology: Direct Thermal
• Print Resolution: 203 dpi
• Print Width: 80 mm
• Print Speed: Selectable 5, 6, 7, or 8 inches per second
• Connectivity: USB 2.0 with virtual COM for RS232C
• Power Supply: 24 VDC
• Power Consumption: 150 W maximum during operation; 5.0 W maximum at standby
• Operating Temperature: 5°C to 40°C
• Operating Humidity: 30% to 85% RH
• Operating Altitude: 0 to 5,000 m
• Storage Temperature: -5°C to 50°C
• Storage Humidity: 5% to 95% RH
• Dimensions: W 110 mm x D 140 mm x H 68 mm
• Weight: 1.4 kg / 3.1 lb
• Dimensions with RFID: W 110 mm x D 170 mm x H 68 mm
• Weight with RFID: 1.6 kg / 3.6 lb
• Supported 1D Barcodes: Interleaved 2 of 5, Industrial 2 of 5, Code 39, Code 128, EAN-13
• Supported 2D Barcodes: PDF417, Aztec, Data Matrix, QR
• Conformable Standards: Fully ITPS compatible, IATA Resolution 722e, IATA Resolution 740 and 1740e
• Certified Interfaces: ARINC vMUSE, ARINC iMUSE, ARINC cMUSE, Navitaire GoNow, eNewSkies
• Additional Supported Interfaces: SITA AirportConnect CUTE, SITA Liaison, Amadeus Air IT, Americas EASE, TravelSky NEW APP, TravelSky Angel NEW APP, Microsoft Windows driver for airline use
• Agency Approvals: UL, cUL
• Options: RFID unit, near-end sensor, AC adaptor, USB 2.0 cable assembly

• Airport self-service kiosks
• Airline check-in kiosks
• Self-baggage drop systems
• Boarding pass printing
• Baggage tag printing
• Airline ticketing systems
• Passenger service systems
• Airport automation equipment
• Transportation terminal kiosks
• Embedded airline printer applications

What is the Fujitsu 9890S used for?
The Fujitsu 9890S is used for boarding pass and baggage tag printing in airline self-service kiosks, self-baggage drop systems, and airport passenger processing environments.

Is the Fujitsu 9890S a countertop printer?
No. The Fujitsu 9890S is a compact printer module designed for embedded use in kiosks, self-service equipment, and self-baggage drop systems.

Does the Fujitsu 9890S support RFID?
Yes. The Fujitsu 9890S supports RFID as an optional field-upgradeable feature.

Can the Fujitsu 9890S support linerless media?
Yes. The printer can be upgraded for linerless media by changing the platen roller and cutter unit.

What print resolution does the Fujitsu 9890S offer?
The Fujitsu 9890S uses direct thermal printing with 203 dpi resolution.

What barcode formats does the Fujitsu 9890S support?
The Fujitsu 9890S supports Interleaved 2 of 5, Industrial 2 of 5, Code 39, Code 128, EAN-13, PDF417, Aztec, Data Matrix, and QR codes.

What systems is the Fujitsu 9890S compatible with?
The printer supports ITPS standards and is compatible with ARINC vMUSE, ARINC iMUSE, ARINC cMUSE, Navitaire, Amadeus, TravelSky, and Microsoft Windows driver environments.

Is the Fujitsu 9890S suitable for airport kiosks?
Yes. Its compact module design makes it well suited for airline self-service kiosks and self-baggage drop systems where space is limited.
