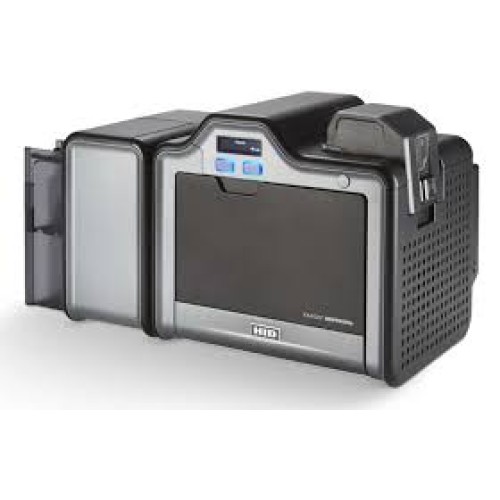

The HID FARGO HDP5000e ID Card Printer and Encoder is a next-generation, high-definition retransfer card printing system designed for secure, professional-grade ID issuance. Built on HID Global’s proven retransfer technology platform, the HDP5000e delivers exceptional print clarity, edge-to-edge coverage, and enhanced durability for organizations that require reliable and high-volume credential production.

Engineered for medium to large-scale deployments, the HDP5000e is widely used in government agencies, corporate enterprises, educational institutions, and healthcare organizations. Its retransfer printing process first prints images onto a clear film that is then thermally bonded to the card surface, resulting in superior image quality and the ability to print consistently on a wide range of card materials, including PVC, PET, ABS, and polycarbonate.

The system is designed with a modular architecture, allowing organizations to expand functionality over time with optional dual-sided printing, lamination modules, and advanced encoding options. This flexibility makes it a future-ready solution for evolving ID program requirements, including secure access control, smart card issuance, and multi-layered credential security.

With built-in security features such as AES-256 encryption, resin scramble data protection, and password-controlled access, the HDP5000e helps safeguard sensitive identity data throughout the printing process. Its intuitive SmartScreen interface simplifies operation, maintenance, and troubleshooting, reducing downtime and minimizing training requirements for operators.

Overall, the HID FARGO HDP5000e is positioned as a robust, enterprise-grade ID card personalization system that balances high-definition print quality, security, and scalability, making it ideal for organizations that require reliable issuance of secure identity credentials at scale.

• High-definition retransfer printing for edge-to-edge, photo-quality ID cards
• 300 dpi resolution optimized for sharp text, images, and security elements
• Modular design supports field-upgradable encoding, lamination, and dual-sided printing
• Supports magnetic stripe, contact smart card, and contactless RFID encoding options
• Compatible with PVC, PET, ABS, and polycarbonate card materials
• AES-256 encryption and resin scramble data protection for secure printing workflows
• Intuitive SmartScreen interface for setup, maintenance, and troubleshooting
• High-speed throughput suitable for medium to large ID issuance programs
• Optional dual input hopper for multiple card types and higher efficiency
• Enterprise-ready integration with HID Fargo Connect and Asure ID software platforms

• Print Technology: High-definition retransfer dye sublimation / resin thermal transfer
• Resolution: 300 dpi
• Print Speed: Up to ~133 cards per hour (YMCK with transfer process)
• Card Types: PVC, PET, PETG, composite PVC, polycarbonate
• Card Format: CR-80 standard (3.375” x 2.125”)
• Card Thickness Range: Approximately 0.030”–0.050” (0.762–1.27 mm)
• Input Hopper Capacity: Up to 200 cards (configuration dependent)
• Connectivity: USB 2.0, Ethernet
• Encoding Options: Magnetic stripe, contact smart card, contactless smart card, RFID (optional modules)
• Security Features: AES-256 encryption, resin scramble data protection, secure ribbon authentication
• Lamination: Optional single or dual-sided inline lamination modules
• Operating System Support: Windows-based drivers with enterprise software compatibility
• Software Integration: HID Asure ID, Fargo Workbench, HID Fargo Connect
• Printer Type: Single or dual-sided (upgradeable module)

• Corporate employee ID badge issuance and access control systems
• Government-issued identification cards and secure credentials
• University and campus student and staff ID programs
• Healthcare facility staff identification and patient access systems
• Financial services and secure membership card issuance
• Transportation and transit access credentials
• Enterprise smart card and multi-factor authentication systems
• High-security facility access control programs
• Service bureaus and centralized ID card production centers
• Large-scale, multi-site identity management deployments

What is the HID FARGO HDP5000e used for?

It is used for high-quality, secure ID card printing and encoding in corporate, government, education, and healthcare environments.

What printing technology does it use?

It uses high-definition retransfer printing, where images are first printed onto film and then transferred to the card surface for edge-to-edge quality.

Can it print on smart cards?

Yes. It supports contact and contactless smart card encoding, including magnetic stripe and RFID options.

Is the printer suitable for high-volume printing?

Yes. It is designed for medium-to-large volume ID issuance environments with reliable throughput and modular scalability.
